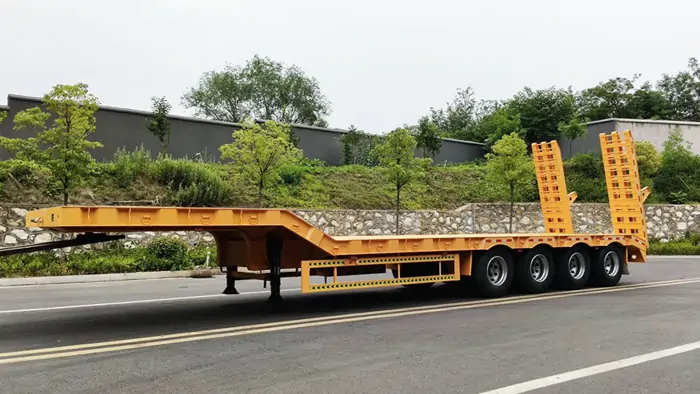

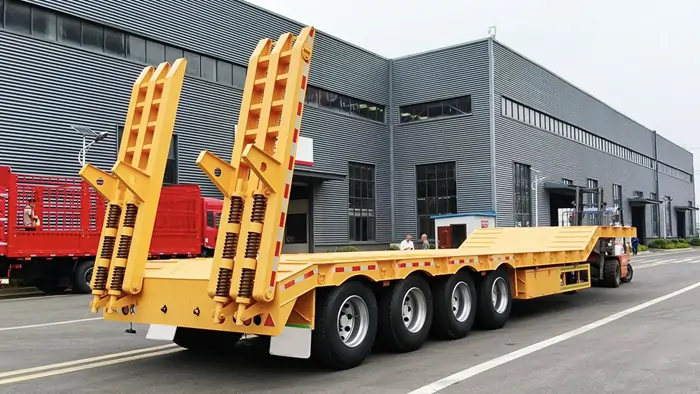

This 4 axle lowboy trailer features a gooseneck and cargo surface of equal width, with the gooseneck section also serving as the cargo surface; this design maximizes the cargo area.
Load capacity: 80 tons
Ladder: Mechanical ladder
Delivery time: 15 – 20 days
$21,500.00
The 4 axle equal-width gooseneck lowboy trailer is a special design of lowbed trailer. The width of the gooseneck of this trailer is exactly the same as the cargo surface, usually between 2.5 meters and 3 meters. The gooseneck part can be used as the cargo surface, and machinery can be parked directly in the gooseneck position to maximize space utilization and greatly improve transportation efficiency.
4 Axle Lowbed Trailer Manufacturer
The main beam of the 4 axle lowbed trailer adopts submerged arc welding technology. In order to improve the load-bearing capacity of the gooseneck, special reinforcement is carried out at the gooseneck and the cargo platform, which can meet the transportation of large machinery and equipment such as excavators, bulldozers, and cranes in various complex road conditions.
| Axle brand | FUWA/BPW/L1/INTAI |
| Tyre model | 235/70 R 17.5 245/70 R 17.5 11 R 22.5 12 R 22.5 |
| Suspension | Mechanical suspension |
| Overall dimension | 15800mmX3000mmX3750mm |
| Loading capacity | 80ton |
| Ladder | Hydraulic ladder/Mechanical ladder |
1.With its extra-long cargo deck and high space utilization, it can transport multiple pieces of machinery and equipment simultaneously.
2.All axles are selected from world-renowned brands such as FUWA, BPW, and SAF.
3.Anti-slip strips are welded to the loading ramps and gooseneck area to increase the stability of the equipment during transportation.
Lowboy trailers are available in two customizable types: detachable gooseneck low-flatbed and extendable low-flatbed trailers. Our engineering team will provide the most suitable design solution based on your transportation needs.
