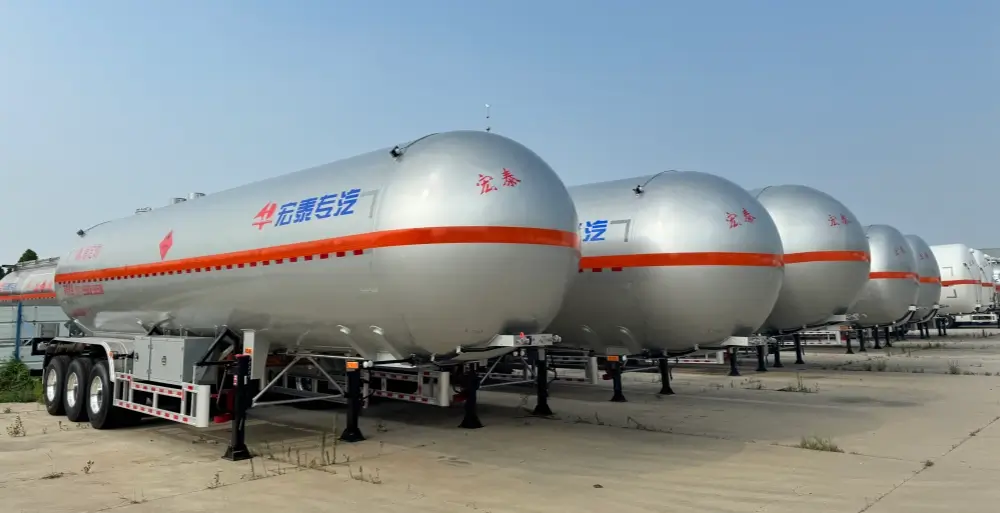

LPG tank trailers are designed for transporting liquefied petroleum gas (Propane, Butane, or mixtures thereof). It is widely used in energy companies, gas distribution stations, industrial enterprises, and intercity transportation.
Design pressure: 1.61-2.2MPa (customizable)
Volume: 20-60m³
Production cycle: 20-30 days
$41,000.00
LPG gas tank trailer primarily transport products such as liquid ammonia, propylene, butane, butene, butadiene, and pentane. The company’s impact protection plates are made of aluminum alloy, reducing the weight of the tank.

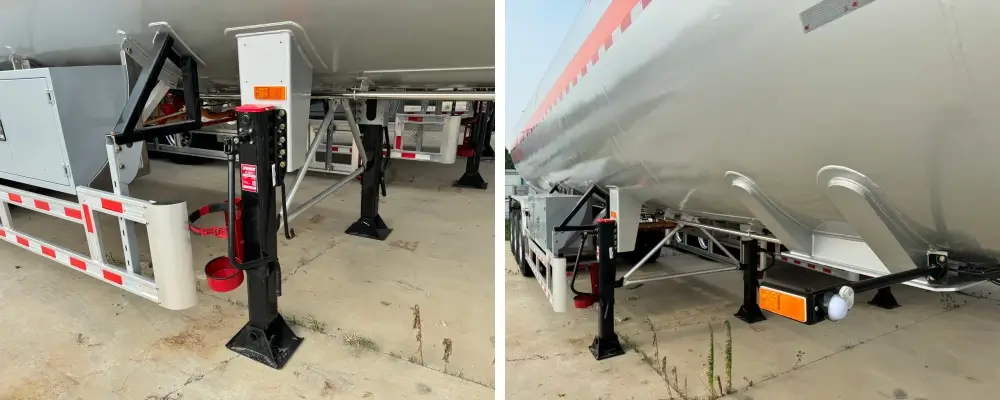

As per customer requirements, the LPG tank trailer uses 28T JOST outriggers and FUWA axles. Our LPG tank trailers are best-sellers in Kazakhstan, the Philippines, South America, and Africa, and the INTAI brand LPG tank trailers have become a top-selling brand in China. We also support customized LPG tank trailer services. Contact us for transportation solutions.
| Set pressure of the safety valve (in MPa) | 1.85 |
| Design temperature ℃ | -40/50 |
| Minimum metal design temperature °C | -40 |
| Design pressure (MPa) | 1.76 |

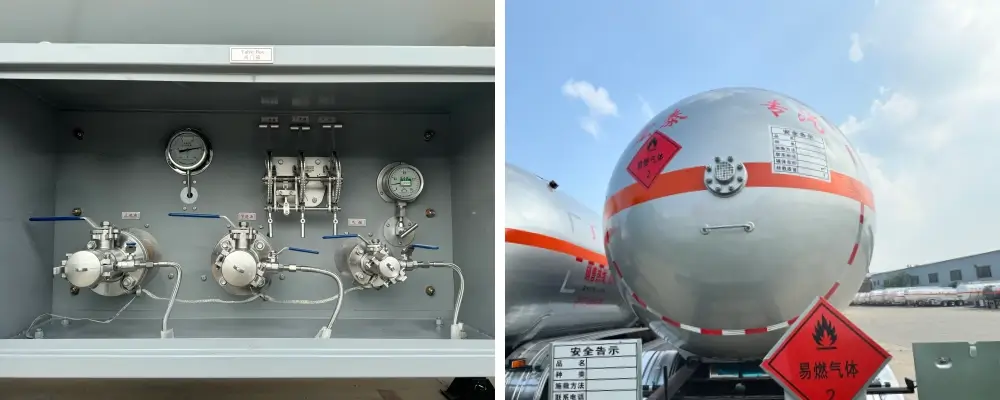

| LPG discharge valve | Mechanical emergency shut-off valve, ball valve, operable on both sides, liquid phase diameter DN50, gas phase diameter DN25, domestically produced valve, float-type level gauge. |
| Braking system | EBS dual circuit, disc type (WABCO brand) |
| Fire extinguisher specifications | 8kg*2 |
| Other accessories | Static drag belt, toolbox, other items including spare tire lifters, spare tire handles, leg handles, tire sleeve plates, axle head sleeve plates, etc. are all vehicle-mounted tools. |
| Hub material | Aluminum alloy |
| Tire type | 12R22.5 |
| Overall dimensions | 13370×2550×4000mm |
