This 40 ton dump trailer is custom-made for transporting ore in mining areas. The trailer body is thickened and made of wear-resistant steel, while the chassis uses high-strength steel.
Production time: 15 – 20 days
Model: 3 Axle 40 ton tipper trailer
Application: Ore, sand, coal
$16,500.00

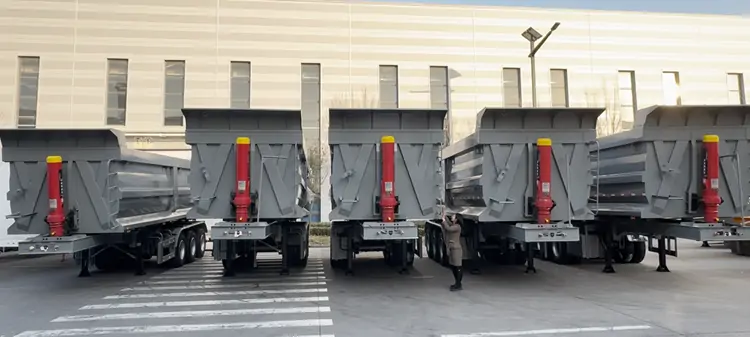

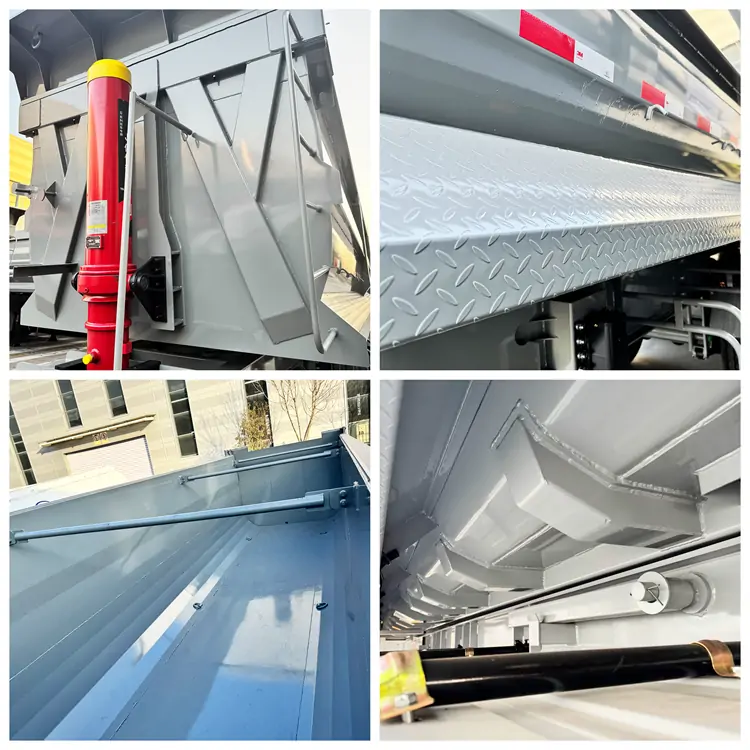

The mining 40 ton tipper trailer is ready to be shipped to Tanzania. According to the customer’s requirements, the box body of the 40-ton dump trailer has been thickened to meet the needs of ore transportation. The bottom of the box body is 10mm thick and the side plates are 8mm thick. In addition, the main beam adopts a double web beam design, which provides super strong chassis strength and adapts to various complex road conditions in Africa.

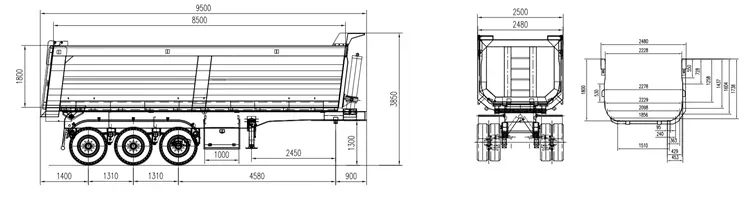

| Dimensions of the shape | 9500*2500*1750mm |
| Main beam thickness | Top: 14mm Bottom: 16mm Middle: 10mm |
| Box thickness | Bottom: 10mm; Sides: 8mm |
| Axle | BPW, FUWA, INTAI (optional) |
| Landing gear | JOST、INTAI |
| Hydraulic cylinder | HYVA、INTAI (optional) |
| Leaf spring | 90*13mm (10 pieces) |
| Tire type | 12R22.5 |
| Hub | 9.0-22.5 14mm*13 sets |
