40FT 3 Axle Flatbed Trailer is a heavy-duty solution for containers, steel, machinery, and general cargo, with a payload of up to 60 tons. It features a strong Q345B steel frame, FUWA axles, mechanical suspension, and customizable specifications. Manufactured at INTAI Factory, it offers factory-direct production and an original factory warranty.
Dimension: 12,500*2,500*1,550 mm
Axle: 3 Axle Fuwa
Loading Capacity: 60T
King Pin: 2″ or 3.5″
$9,900.00
40FT 3 Axle Flatbed Trailer is a heavy-duty transport solution designed for container transportation, general cargo, steel products, construction materials, machinery, and other large loads. This model combines a 40ft loading platform with a 3-axle running system and a rated payload of up to 60 tons, making it suitable for demanding freight transportation. The trailer uses a strong steel frame, heavy-duty FUWA axles, and a reliable mechanical suspension system. Customers can also choose axle brands according to their operating conditions and budget. The overall structure can be customized based on local road regulations, cargo requirements, and transportation applications.
For customers looking for a durable 40FT Flatbed Trailer for long-distance or heavy-load transportation, this configuration offers a practical balance between loading capacity, structural strength, road stability, and maintenance convenience. 3 Axle 60 Ton Flat Bed Trailer is suitable for transporting 20ft and 40ft containers, steel, pipes, machinery, construction materials, and other heavy or oversized cargo. Its open flatbed design makes it a versatile solution for container logistics, industrial transportation, construction projects, and general freight.
The 3 Axle 60 Ton 40FT Flatbed Trailers feature a reinforced high-strength steel frame with main beams, cross members, side beams, and a loading platform designed for heavy cargo. A typical 40ft flatbed is about 12,500 mm long and 2,500 mm wide, with dimensions and payload capacity customizable according to customer requirements. The trailer can support 50–60 tons, depending on axle capacity, frame design, local regulations, and operating conditions.

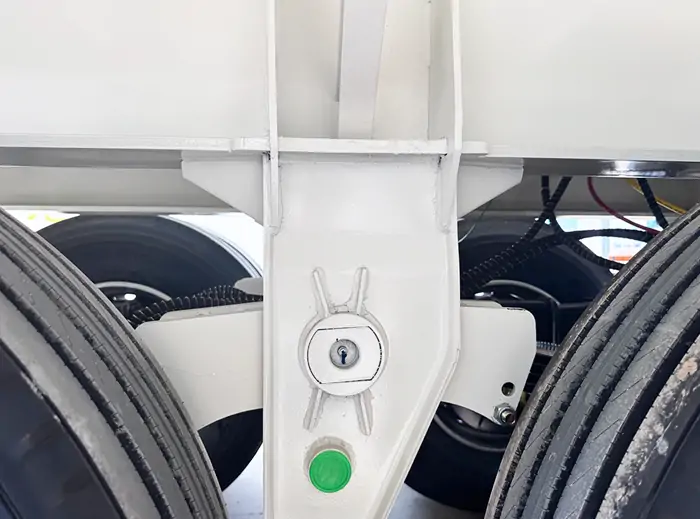

The trailer comes with 3 FUWA axles and a heavy-duty mechanical suspension as standard. Customers can also choose FUWA, BPW, SAF, or INTAI axles with different capacities. The mechanical suspension offers a simple and durable structure, making it suitable for transporting containers, steel, machinery, construction materials, and other heavy cargo on various road conditions.
| Item | Standard Configuration |
| Product Name | 40FT 3 Axle Flatbed Trailer |
| Brand | INTAI |
| Loading Capacity | Up to 60 Tons |
| dimension | 12,500*2,500*1,550 mm |
| Axles | 3 Axles |
| Standard Axle Brand | FUWA / BPW / SAF / INTAI |
| Suspension | Mechanical Suspension |
| Main Beam | High-Strength Steel |
| Steel Material | Q345B / Customized |
| Container Locks | Optional 20FT / 40FT ISO Locks |
| King Pin | 2″ or 3.5″ |
| Tires | 12R22.5 or Customized |
| Braking System | Dual-Line Air Brake |
| ABS | Optional |
| Electrical System | 24V |
| Loading Platform | Steel / Checkered Plate |
| Paint | Customized |
| Color | Customer Choice |
| Application | Containers, Machinery, Steel, General Cargo |
*The actual payload depends on the trailer design, axle capacity, road regulations, and operating conditions.

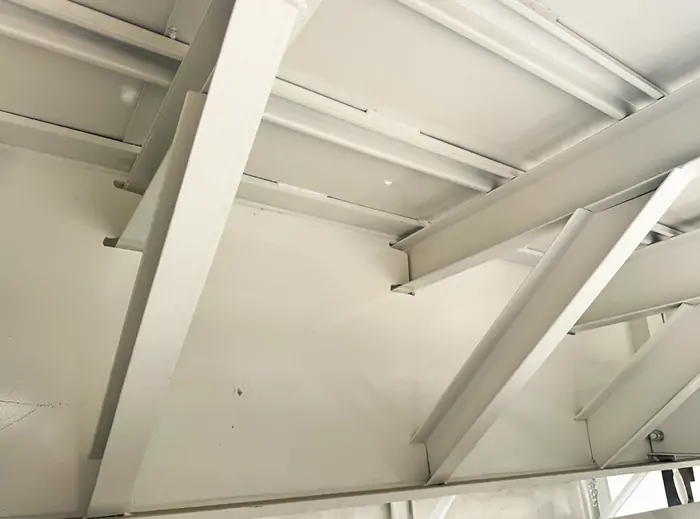

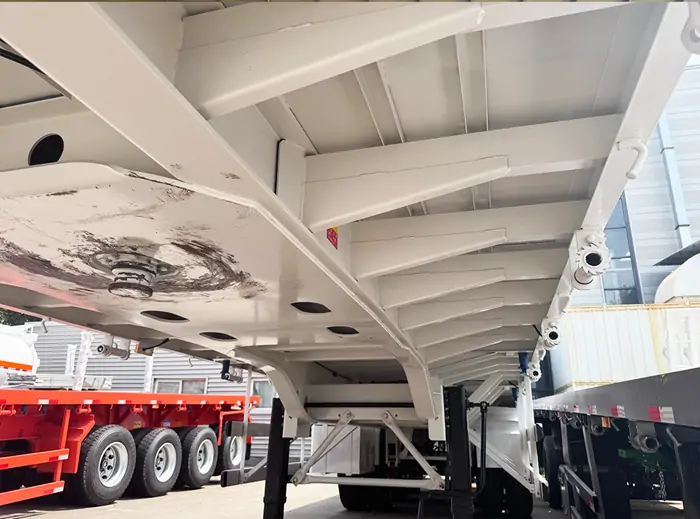

The 3 Axle 60 Ton Flatbed Trailer from China uses a reinforced chassis designed for heavy-load transportation. The manufacturer can build the main frame with high-strength steel such as Q345B. At the same time, reinforced cross members connect the main beams to improve chassis rigidity and distribute cargo weight more effectively. For heavy-duty applications, the manufacturer can also customize the main beam height and plate thickness according to the required payload. For example, a typical heavy-duty design may use a main beam around 500 mm high, with optimized upper plate, web plate, and lower plate thicknesses. This design provides sufficient bending strength while avoiding unnecessary weight.

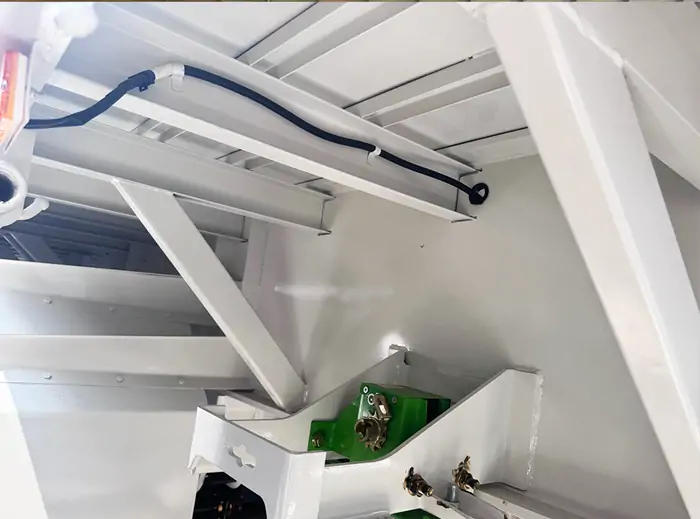

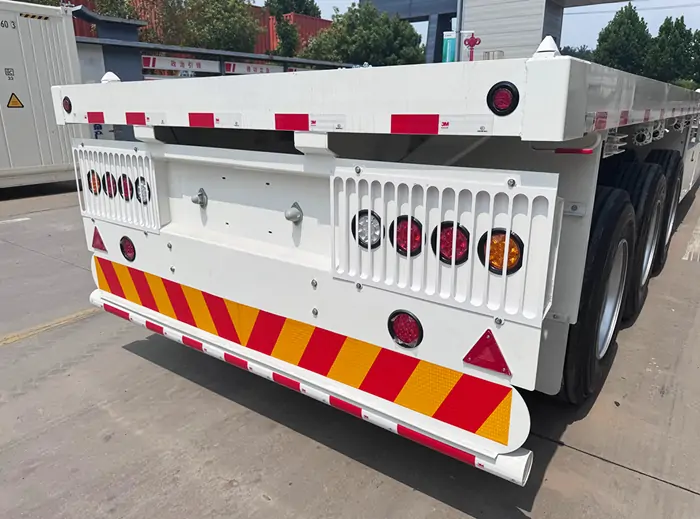

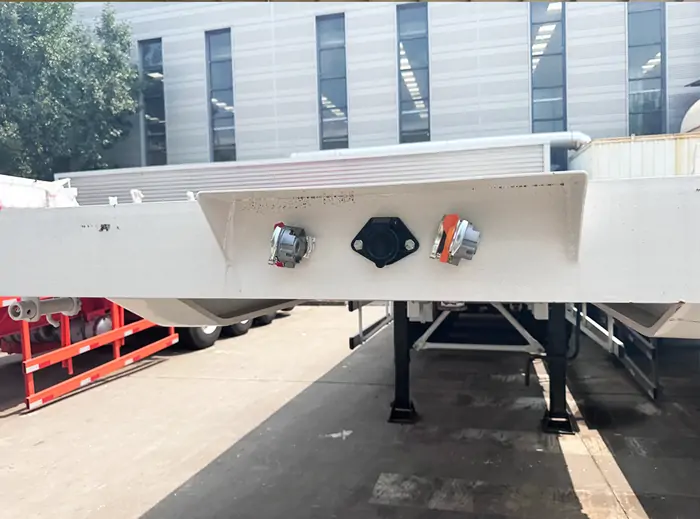

In addition, the loading platform can use a durable checkered steel plate. The textured surface increases friction between the deck and cargo, which helps improve cargo stability during transportation. Furthermore, the trailer uses a dual-line pneumatic braking system with brake chambers and relay valves to provide controlled braking under heavy loads. Depending on the destination market, the manufacturer can configure ABS, WABCO-related braking components, LED lighting, a 24V electrical system, side marker lights, rear lights, and reflective safety markings to meet specific requirements. Therefore, the manufacturer can adjust the steel structure, deck design, braking components, and electrical system according to different payload requirements, road conditions, and local regulations.
Different countries have different road conditions, axle-load regulations, and cargo requirements. Therefore, a standard trailer configuration may not be suitable for every customer. INTAI provides flexible solutions for the 40FT 3 Axle Flatbed Trailer, with customization available for different transportation needs.
Customers can select different axle brands, axle capacities, suspension systems, tire specifications, braking components, king pins, landing gears, container locks, floor structures, and paint colors. We can also reinforce the frame when customers need the trailer to carry particularly heavy machinery or industrial equipment. For container transportation, customers can choose a twist-lock arrangement that suits different container positions. For general cargo transportation, customers can configure the platform to provide a more open loading area. With INTAI customization, customers can adapt the trailer to different markets while maintaining the basic 40ft flatbed concept.

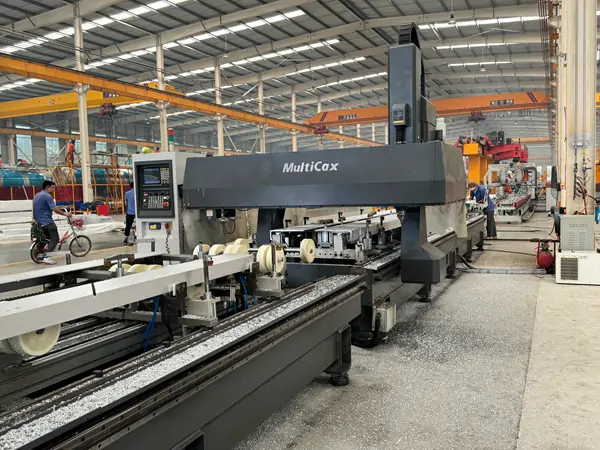

At INTAI Factory, we manufacture the 40FT 3 Axle Flatbed Trailer through steel preparation, frame welding, component assembly, axle and suspension installation, braking and electrical system installation, painting, and final inspection. We focus on frame alignment, welding quality, structural strength, and reliable component installation throughout the production process. Before delivery, our team checks each trailer’s frame dimensions, weld quality, axle and suspension condition, braking performance, lighting, tires, and overall appearance.
INTAI Factory also supports customized production, allowing customers to choose axle brands such as FUWA, BPW, SAF, and INTAI, as well as different axle capacities, suspension systems, tires, braking components, dimensions, loading capacities, and other specifications. With a 40ft loading platform, 3-axle configuration, durable mechanical suspension, and original factory warranty, this 60-ton flatbed semi trailer is suitable for container logistics, heavy cargo, construction, and industrial transportation. Factory-direct manufacturing allows the trailer configuration to match different markets and customer requirements while providing reliable quality and after-sales support.
