50cbm Horizontal LPG Storage Tank is a reliable pressure vessel designed for the safe storage of liquefied petroleum gas. It is widely used in LPG filling stations, industrial plants, gas distribution centers, residential gas supply projects, and commercial energy systems. With a storage capacity of 50 cubic meters, this tank can store approximately 20 to 25 tons of LPG, depending on the gas density and local filling requirements.
Capacity: 50 cubic meters
Design pressure: 1.77 MPa to 2.16 MPa
Delivery: 15-20 days
$22,000.00

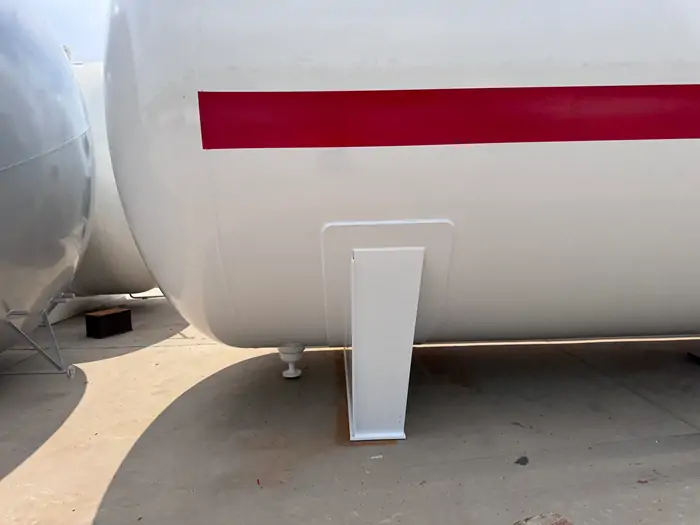

The horizontal design makes the tank easy to install on a concrete foundation. It also provides stable support, convenient inspection access, and efficient use of available space. Compared with vertical LPG tanks, a horizontal LPG storage tank is often preferred for ground-mounted LPG stations and large-scale gas storage projects.
A standard 50cbm Horizontal LPG Storage Tank is usually manufactured from high-strength pressure vessel steel, such as Q345R or SA516 Gr.70. These materials offer good strength, welding performance, and pressure resistance. The tank shell is designed and manufactured according to relevant pressure vessel standards, including ASME, GB150, ADR, or other local regulations.
Typical specifications may include:
The actual tank dimensions can be customized based on customer requirements. A common 50cbm LPG storage tank may have a diameter of approximately 2,600 mm to 2,800 mm and a total length of around 9,000 mm to 11,000 mm.
Safety is one of the most important factors in LPG storage. LPG is stored under pressure and can expand quickly when exposed to high temperatures. Therefore, every 50cbm Horizontal LPG Storage Tank should be equipped with reliable safety accessories.
Common accessories include safety valves, pressure gauges, temperature gauges, liquid level gauges, emergency shut-off valves, inlet and outlet valves, drain valves, and manholes. These components help operators monitor tank pressure, LPG volume, and temperature during daily operation.
The tank body is produced through automatic welding processes. After welding, the tank is tested by non-destructive testing methods such as radiographic testing or ultrasonic testing. Hydrostatic pressure testing and air tightness testing are also carried out before delivery to ensure there are no leaks.
INTAI provides customized LPG storage solutions for customers in Africa, Central Asia, Latin America, Southeast Asia, and other global markets. Our 50cbm Horizontal LPG Storage Tank can be designed according to local standards, project conditions, and customer operating requirements.
We focus on tank material quality, welding accuracy, pressure testing, safety accessories, and anti-corrosion treatment. Customers can also choose optional equipment such as LPG pumps, compressors, filling scales, pipelines, control systems, and skid-mounted LPG station solutions. A high-quality 50cbm Horizontal LPG Storage Tank can improve LPG storage efficiency, reduce gas supply interruptions, and support safe long-term operation.
A 50cbm Horizontal LPG Storage Tank is an ideal solution for safe, efficient, and large-scale LPG storage applications. With a durable pressure vessel structure, reliable safety accessories, and customizable design options, it can meet the needs of LPG filling stations, industrial projects, and energy distribution systems worldwide. As a professional LPG storage equipment manufacturer, INTAI provides high-quality 50cbm Horizontal LPG Storage Tanks with strict quality control, advanced manufacturing technology, and customized solutions for different markets. Contact INTAI today to get detailed technical specifications, tank drawings, and a competitive quotation for your LPG storage project.
