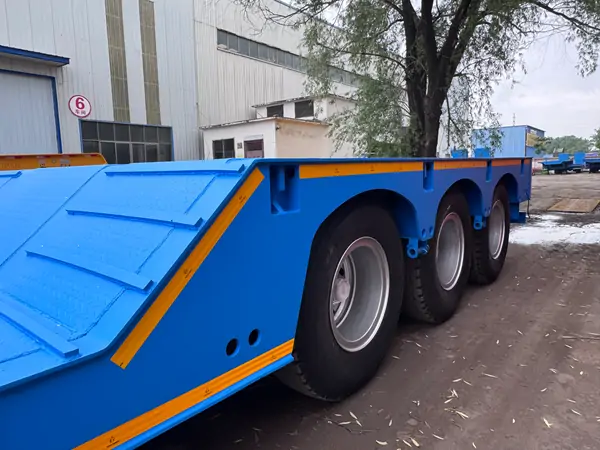

The INTAI removable gooseneck lowboy trailer is specifically designed and developed for the transport of large, oversized, and heavy-duty equipment; its cargo deck length, width, and height can be custom-manufactured to suit the dimensions of the specific cargo being transported.
Load Capacity: 40–150 tons (Customizable)
Axle: 3 axles
Tire: 12.00R20
Advantage: Supports comprehensive customization services.
$30,000.00

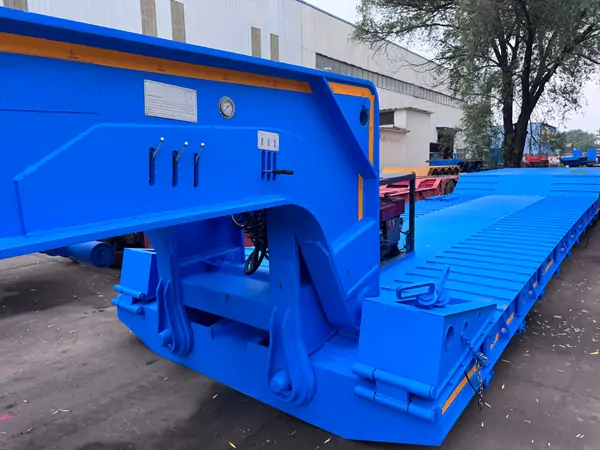

Removable gooseneck trailer, also known as an RGN trailer, is a specialized type of lowboy trailer that features a detachable gooseneck for front-end loading of engineering vehicles. With its exceptionally low deck height, the trailer lowers the center of gravity and improves stability during transport. Therefore, it provides an ideal solution for hauling oversized and overweight machinery and equipment, including large excavators, bulldozers, heavy-duty construction vehicles, and other heavy equipment.

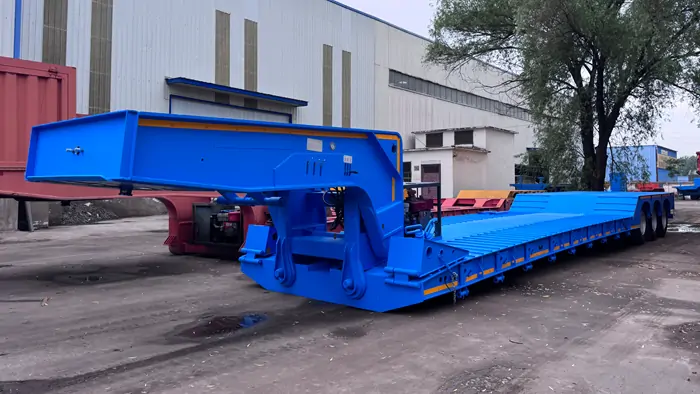

Hydraulic Removable Gooseneck Trailer For Sale

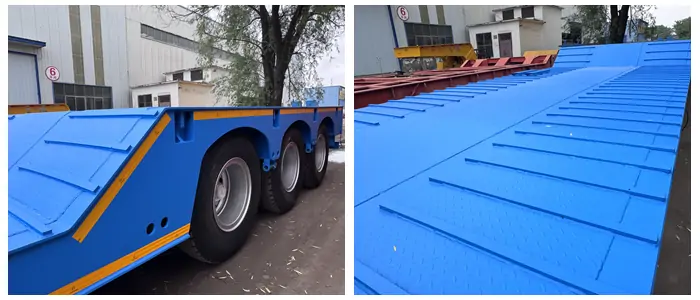

3 Axles 80 Ton Detachable Gooseneck Lowboy Trailer
80 Ton RGN Trailer For Sale
Payload: 80 Tons
Axles: 3 Axle (FUWA/BPW/CTC)
Overall Dimensions: 15,500 mm x 3,000 mm x 1,200 mm
Suspension: Heavy-duty mechanical suspension
Tires: 12.00R20
ABS: Optional
1.Ultra-Low Loading Height: The height from the cargo deck to the ground typically ranges from a mere 300 mm to 600 mm. This provides ample height clearance for transporting oversized equipment, making it easier for them to pass through height-restricted sections of road.

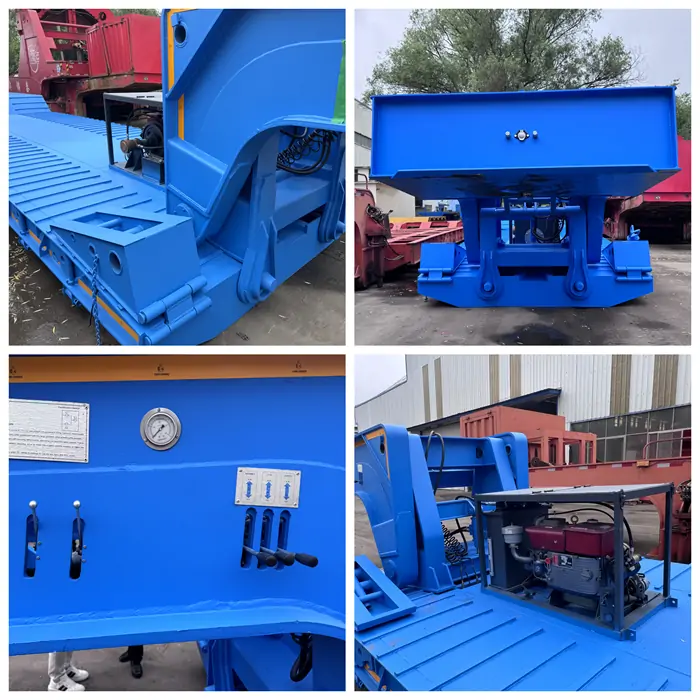

2.High Flexibility: The height of the gooseneck can be precisely adjusted via a hydraulic system.
3.Exceptional Stability: Thanks to the low cargo deck, all RNG trailers feature a low center of gravity. This ensures greater safety while driving or cornering, effectively minimizing the risk of rollovers.
4.High Load Capacity: Detachable gooseneck lowboy trailers can be engineered to handle maximum payloads of up to 150 tons; options such as steerable axles are also available.
5.Steerable Axles (Optional): Select high-end RGN models are equipped with hydraulically steerable axles. This feature allows trailers—even those measuring 20 meters or more in length—to execute turns with an exceptionally tight turning radius, enabling them to navigate narrow urban corners with ease.
