With the continuous development of the fuel transportation industry, aluminum alloy tank trailers are becoming increasingly popular due to their lightweight and corrosion resistance, especially in coastal and humid regions where their durability is even more pronounced.

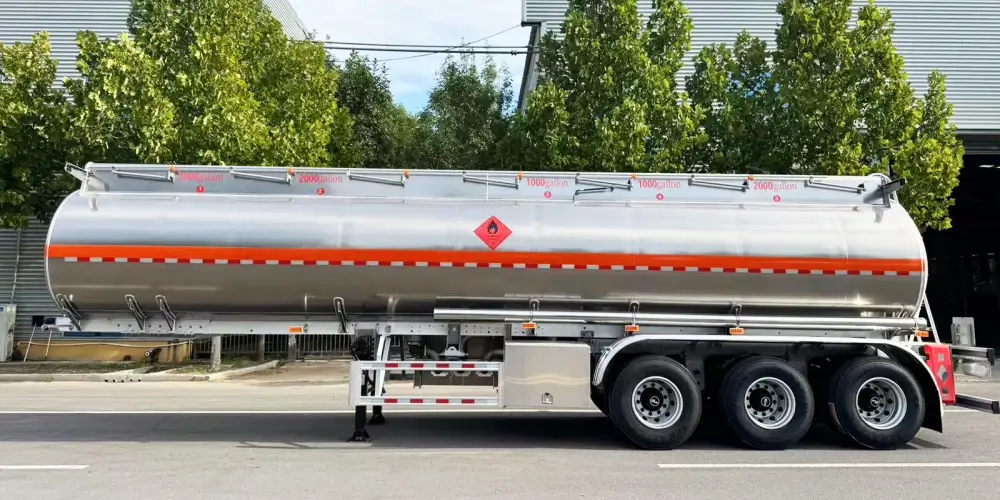

Trailer type: aluminum alloy tanker trailer
Delivery time: 15-20 days
Transport medium: Gasoline, petroleum, diesel,jet a-1,etc.
$21,000.00
The aluminum alloy tank trailer is equipped with a 4-inch API unloading valve, which allows for bottom loading and unloading, making fuel loading and unloading more convenient. The submersible valve is equipped with a pneumatic switch, which can be operated from inside the toolbox and offers more responsive operation.

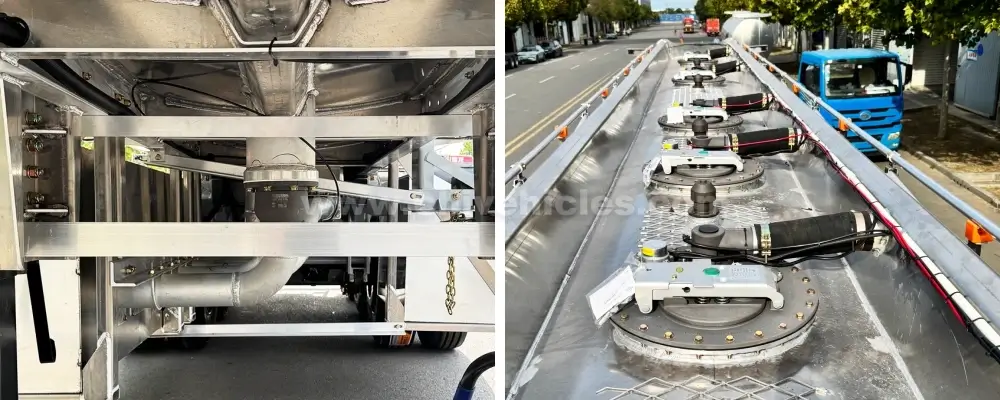

The aluminum alloy tanker trailer is equipped with an oil vapor recovery system, which recovers oil vapor into liquid oil during loading and unloading, reducing gasoline evaporation loss and improving oil utilization. It also reduces the concentration of oil vapor, decreasing the risk of explosion due to polymer buildup.

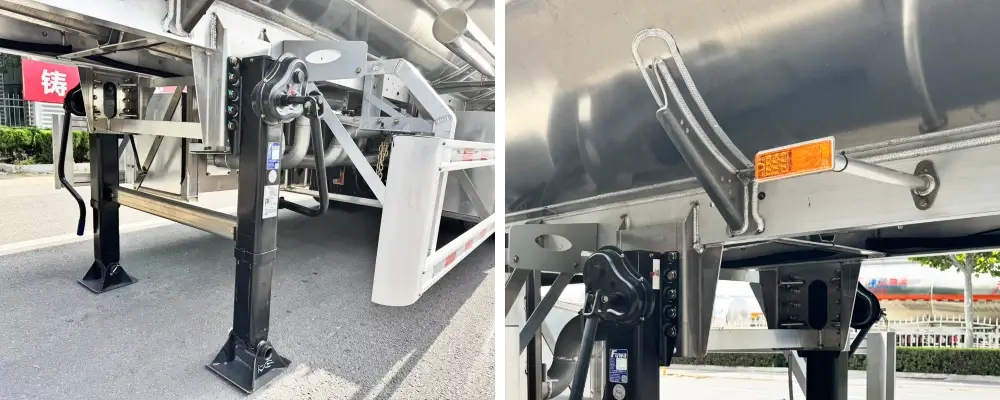

The external beams, chassis, and external supports of the aluminum alloy oil tank trailer are all welded using automated robots, ensuring the integrity of each weld. We have the most advanced aluminum alloy oil tank production welding and tank assembly equipment in China. After each oil tank is welded, the quality management department inspects it and finally conducts non-destructive testing (NDT). Only after all of this is qualified can it proceed to the next production step.
| Dimension | 11650*2500*3650mm |
| Aluminum Tanker Weight | 65000kg |
| Axle brand | INTAI |
| Landing gear | 28T FUWA Brand |
| Discharging Valve | 4 inch API (A reducing coupling can be selected or configured.) |
| Tank Body | 5.5mm |
| End Plate | 6mm |
| Aluminum alloy oil tanker trailer accessories | Two fire extinguishers, aluminum ladder, aluminum toolbox |
