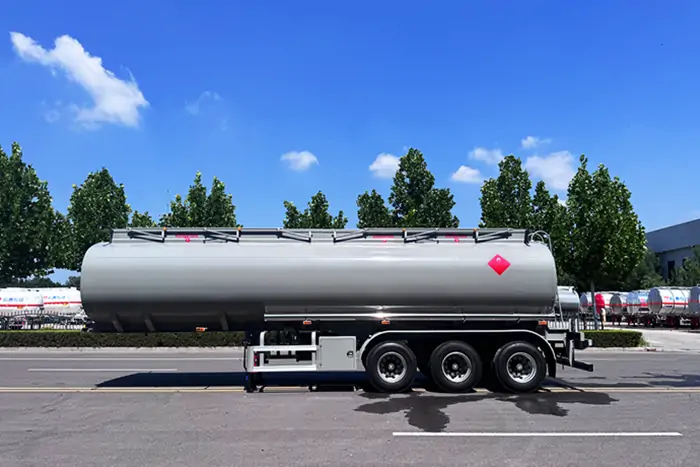

3 Axle Carbon Steel Fuel Tanker Trailer provides a heavy-duty transportation solution for carrying diesel, gasoline, petroleum, crude and other liquid fuels over long distances. Moreover, the 3 Axle 9000 Gallon Carbon Steel Fuel Tanker Trailer combines a durable carbon steel tank body, high-strength steel chassis, and reliable three-axle suspension system to deliver excellent durability, safety, and transportation efficiency.
With a capacity of approximately 9,000 gallons (about 34,000 liters), this fuel tanker semi trailer is widely used in fuel distribution, oil depot supply, mining transportation, and logistics industries. The three-compartment tank design allows operators to transport different fuel products separately, improving loading flexibility and reducing transportation costs.
| Item | Specification |
| Product Name | 3 Axle Carbon Steel Fuel Tanker Trailer |
| Capacity | 9000 Gallon / Approx. 34,000 Liters |
| Tank Material | Carbon Steel |
| Compartment | 3 Compartments |
| Axle | 3 Axles |
| Overall Length | About 11,000-12,500 mm |
| Overall Width | About 2,500 mm |
| Tank Thickness | 5-6 mm (Customized) |
| Baffle Thickness | 5-6 mm |
| Manhole Cover | 500 mm API Manhole |
| Discharge Valve | 3-4 Inch API Valve |
| Brake System | WABCO Air Brake System |
| Suspension | Mechanical Suspension |
| Landing Gear | JOST / FUWA Optional |
| Kingpin | 2 Inch or 3.5 Inch |
| Tires | 12R22.5 or 385/65R22.5 |
The main advantage of this Tri Axle Carbon Steel Fuel Tanker Trailer lies in its durable carbon steel construction. The tank body uses high-quality carbon steel materials, which provide excellent impact resistance and structural strength during daily transportation.
Moreover, the trailer chassis features a high-strength steel frame with reinforced main beams and optimized welding technology. This robust structure helps the trailer withstand heavy loads, rough roads, and long-distance transportation while maintaining excellent stability.
Compared with ordinary trailers, the reinforced frame design improves:
The high-strength steel chassis is especially suitable for Africa, Middle East, Central Asia, and other markets where road conditions can be challenging.
Carbon Steel vs. Aluminum Alloy Tanker Trailer: Which One Is the Right Choice for Your Transport Business? This article will help you find the answer.
The 3 Axle Fuel Tanker Trailer uses three heavy-duty axles to provide stable support for the tank body and improve overall driving performance.
The 3 axle configuration offers:
The trailer can use well-known axle brands such as FUWA, BPW, INTAI or other customer-specified options. In addition, customers can choose between mechanical suspension and air suspension based on their operating conditions.

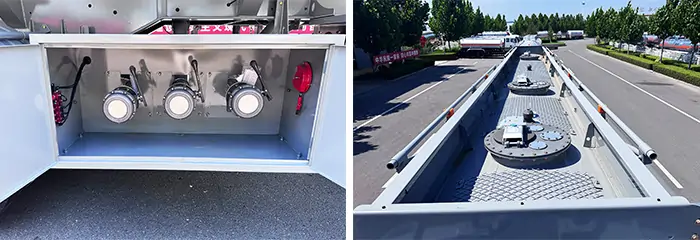

The 9000 Gallon Carbon Steel Fuel Tanker Trailer adopts a 3 compartment tank structure. Each compartment is separated by reinforced baffles, allowing customers to transport different types of fuel products in one trip.
The three-compartment design provides several benefits:
Different fuels such as diesel, gasoline, kerosene, and other petroleum products can be loaded separately according to customer requirements.
Internal baffle plates reduce liquid movement during driving, improving vehicle stability and safety, especially during braking and turning.
Operators can complete multiple delivery tasks with one trailer, helping reduce fuel consumption and operating costs.
The compartment number, tank capacity, and internal structure can also be customized according to different market requirements.
Safety plays a crucial role when transporting flammable liquids. Therefore, 3 Axle Carbon Steel Fuel Tanker Trailer incorporates multiple safety systems to enhance operational reliability and provide safer transportation.
The trailer can be equipped with API valves, discharge pipes, and bottom valves to achieve faster and safer fuel loading and unloading.
The emergency valve system helps quickly stop fuel flow in abnormal situations, improving transportation safety.
Grounding systems and anti-static equipment help reduce risks caused by static electricity during fuel transportation.
Before delivery, each tanker trailer undergoes strict inspection and testing, including welding inspection, tank pressure testing, and road performance checks.
The Tri Axle Carbon Steel Fuel Tanker Trailer is an ideal choice for customers who need a reliable, durable, and cost-effective fuel transportation solution. With a 9000 gallon capacity, 3 compartment tank design, 3 axle configuration, and high-strength steel chassis, this tanker semi trailer delivers excellent performance for long-distance fuel distribution.
Whether transporting diesel, gasoline, or petroleum products, this 3 Axle Carbon Steel Fuel Tanker Trailer provides the strength, safety, and efficiency required for modern logistics operations.
