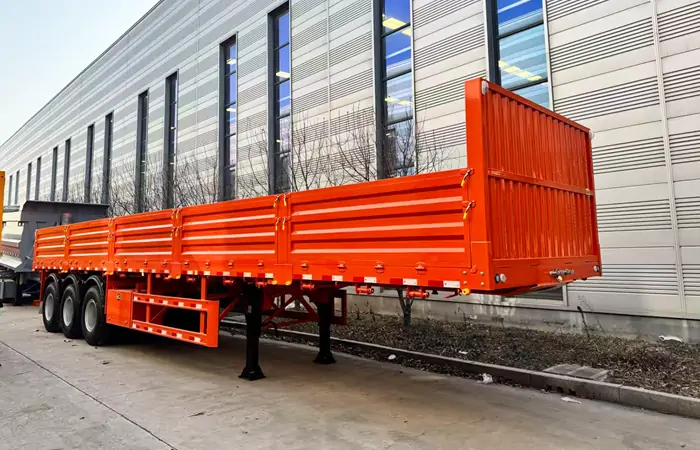

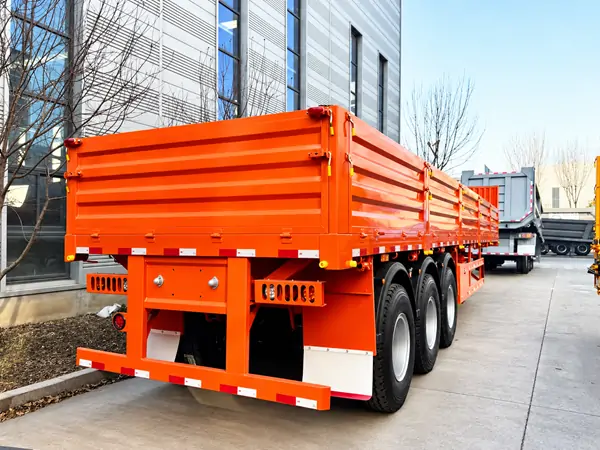

3 Axle Sidewall Semi Trailer from INTAI Factory is a versatile and durable cargo transportation solution designed for general freight, agricultural products, construction materials, steel products, machinery, and bulk goods. With a strong chassis, three heavy-duty axles, customizable sidewall height, and an open loading platform. INTAI supports customized configurations, including trailer dimensions, axle capacity, suspension, tires, braking systems, floor plates, and optional container twist locks. As an experienced Sidewall Semi Trailer manufacturer in China, INTAI Factory provides reliable, application-focused trailer solutions for customers in international markets.
Dimension: 12500mm * 2500mm *1550+600mm
Load Capacity: 60Ton
Axle: 3 Axles
King Pin: 2.0 or 3.5 inch
$12,000.00
3 Axle Sidewall Semi Trailer offers a versatile cargo transportation solution for general cargo, bulk goods, agricultural products, construction materials, machinery parts, and other freight that requires additional side protection. Unlike a standard flatbed semi trailer, its sidewall structure helps secure cargo on the loading platform and reduces the risk of cargo shifting or falling during transportation.
In addition, the 3 axle configuration provides a practical balance between load capacity, road stability, and operating flexibility. Depending on local regulations and specific transportation requirements, customers can choose 13-ton or 16-ton axles for a typical Sidewall Trailer. Furthermore, INTAI can customize the trailer length, sidewall height, suspension, braking system, tires, and other components to meet different cargo and operating needs.
For customers who need one trailer for different types of cargo, a Sidewall Semi Trailer offers more flexibility than a conventional flatbed. The side panels can be designed as fixed, detachable, or foldable structures. Optional container twist locks can also allow the trailer to transport standard 20ft and 40ft containers after removing or lowering the side panels. This makes the trailer suitable for logistics companies, agricultural transportation, construction projects, mining operations, and general freight businesses.
The sidewall height can also vary significantly. Common designs use sidewalls around 600 mm, 800 mm, 1,000 mm, or 1,200 mm, while higher sidewalls can be produced for customers who need additional cargo containment.
| Item | Typical Configuration |
| Trailer Type | 3 Axle Sidewall Semi Trailer |
| Overall Length | 12,500–13,000 mm |
| Overall Width | 2,500 mm |
| Sidewall Height | 600–1,200 mm or customized |
| Axles | 3 Axles |
| Axle Capacity | 13T / 16T |
| Main Beam | High-strength Q345B steel |
| Main Beam Height | 450–500 mm |
| Floor | Steel plate / checker plate |
| Suspension | Mechanical Suspension |

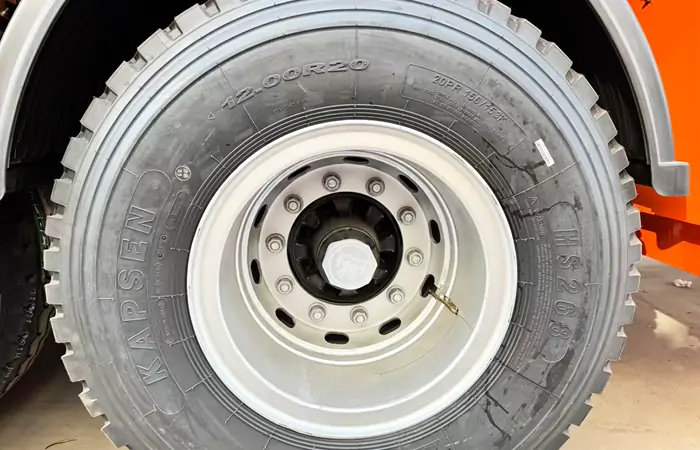

| Tires | 12R22.5 or customized |
| Kingpin | 2 inch / 3.5 inch |

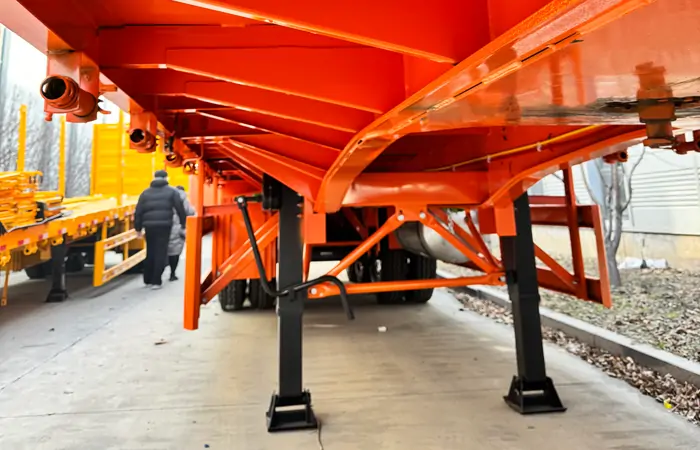

| Landing Gear | Heavy-duty 28T class |
| Braking System | Dual-line pneumatic braking |
| ABS/EBS | Optional according to market |
| Twist Locks | Optional 4 / 8 / 12 sets |
INTAI Factory focuses on the design and production of semi trailers for international markets. As an experienced semi trailer manufacturer in China, INTAI provides customized trailer solutions for different cargo types, road conditions, and market requirements.
The factory can customize 3 Axle Sidewall Semi Trailer configurations based on customer specifications instead of simply supplying a fixed standard model. From chassis design and steel selection to axle configuration, sidewall height, braking system, suspension, painting, and optional accessories, every major component can be matched to the intended application.
Common sidewall heights include 600 mm, 800 mm, 1,000 mm, and 1,200 mm. Higher or lower sidewalls can also be customized.
Yes. A customized sidewall trailer can use container twist locks. Depending on the chassis design, customers can select different twist-lock configurations for 20ft and 40ft container transportation.
The payload depends on the chassis design, axle capacity, tare weight, road regulations, and cargo type. Many commercial configurations fall within approximately 40–60 tons, while some heavy-duty designs advertise higher rated capacities. The final legal payload should always follow local regulations.
Yes. INTAI can customize the trailer length, width, sidewall height, axle configuration, suspension, tires, braking system, floor, twist locks, painting, and other components according to customer requirements.
The 60Ton Sidewall Semi Trailer provides a practical transportation solution for companies that need more cargo protection than a flatbed while maintaining the flexibility of an open loading platform. Its three-axle configuration supports medium- and heavy-duty transportation, while customizable sidewalls allow the trailer to adapt to different cargo types. For agricultural products, construction materials, industrial cargo, packaged goods, bulk freight, and container transportation, a well-designed Drop Side Semi Trailer can provide a strong combination of flexibility, durability, and loading efficiency.
If you are looking for a 3 Axle Sidewall Semi Trailer Manufacturer in China, Contact INTAI Factory can provide customized solutions based on your cargo, payload, road conditions, and destination-market requirements.
