4 Axle dump trailers, with their flexibility and efficiency, have adapted to road transport in various countries. Their application scenarios are constantly expanding, from the construction industry to the logistics industry.

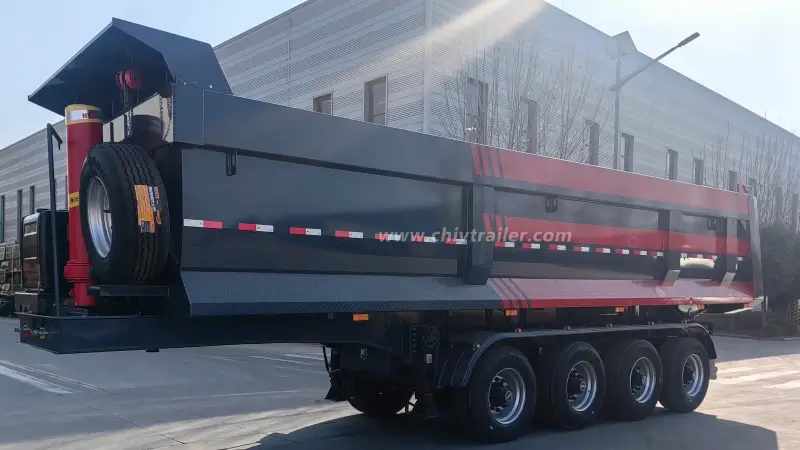

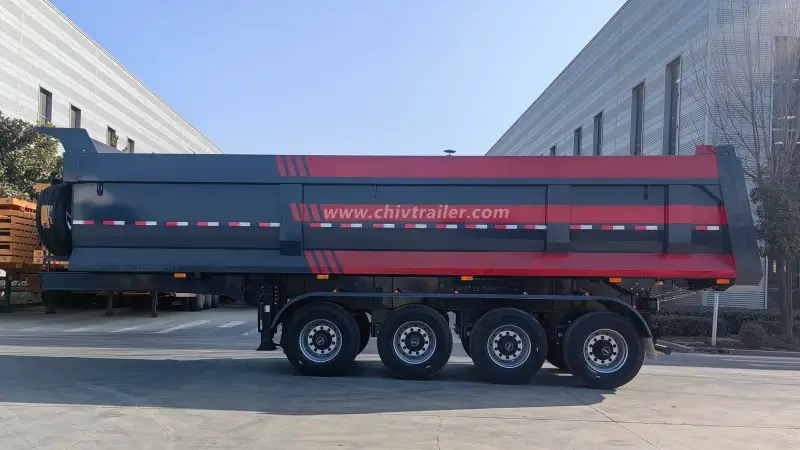

Product model: 4 Axle Dump Trailer
Production time: 15 – 20 days
Application: Ore, sand, transport aggregate, building materials, etc.
$18,900.00
4 Axle dump trailers are widely used in the transportation of building materials, mining, and agriculture. Sand, gravel, ore, metal, and coal are the most commonly transported goods. Typically, four-axle dump trailers offer customized services for various road conditions, including modifications to the main body and subframe, to adapt to local road conditions.

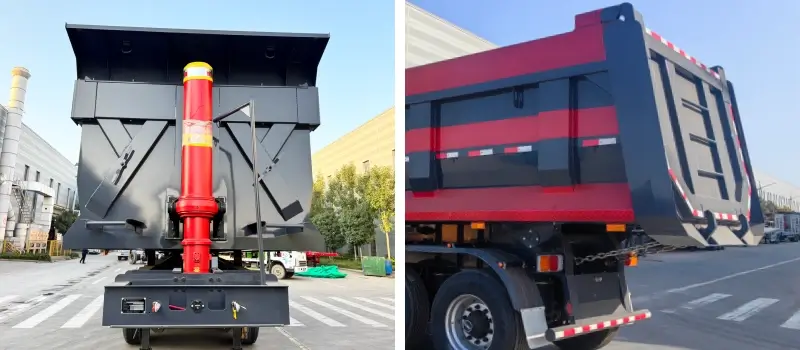

The dump trailer body is available in U-shaped and square shapes. The thickness of the bottom and side panels will be adjusted according to the type and type of goods being transported.
| Dimensions | 9500x2500x3550mm |
| Landing gear | FUWA/JOST(Optional) |
| Axle | FUWA/BPW/INTAI |
| Suspension | Air suspension |
| Load capacity | 30-80Ton |
| Hydraulic system | HYVA |
| Box material | NM450 wear-resistant steel |
| Chassis material | High strength steel |
When selecting a dump trailer, the appropriate vehicle configuration should be chosen based on the characteristics of the materials being transported, road conditions, and policy requirements to maximize its efficiency.
Reason: 1. Under the same load conditions, the requirements for the thickness of the steel body of the dump trailer are not exactly the same for transporting large rocks and sand. The body thickness of the box for transporting rocks will be thicker to protect the box from the impact of the rocks during loading and unloading and to prevent the box from cracking.
2.Different road conditions necessitate different designs for dump trailer chassis. For complex road conditions, we reinforce the dump trailer chassis, including the main beam structure.
3.Before purchasing, you should determine the local weight restrictions and size requirements for semi-trailers. Only after confirming these can the engineer provide a production plan based on your requirements.
Contacting the factory directly can save you 15% on costs.
Provide you with the latest prices and product catalogues
