The 45,000 Liters diesel tanker trailer is made of aluminum alloy, which has the advantages of being lightweight, corrosion resistant, and having high recycling value.
Type: 45,000 liter diesel tanker trailer
Delivery time: 20-30 days
Material: Aluminum alloy
$15,500.00
The 45,000L diesel fuel tank trailer can be customized with stainless steel, aluminum alloy, or carbon steel for the tank body. Carbon steel tanker trailers are typically painted, while aluminum alloy tanker trailers can be painted or left in their original color. This is because aluminum alloy forms a thin film of aluminum oxide upon contact with air, providing corrosion protection.

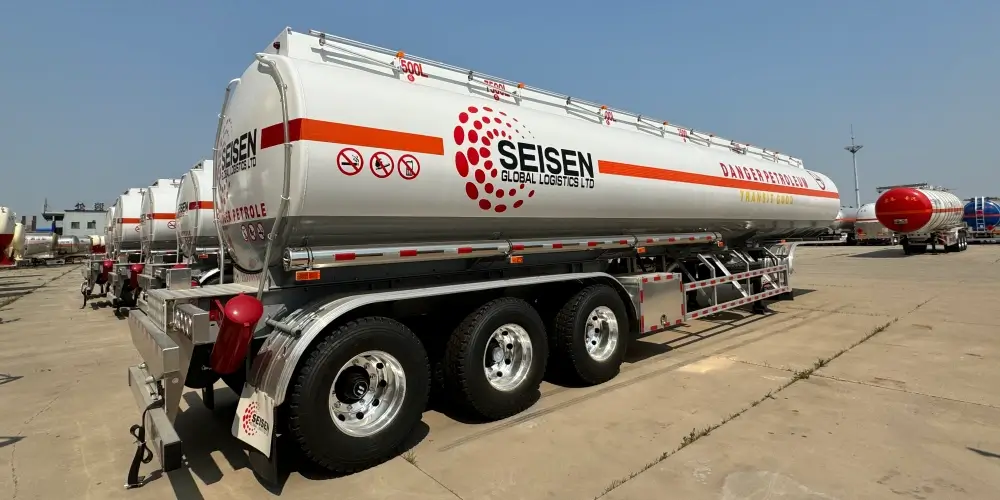

45000 Liters Diesel Fuel Tank Trailer Images

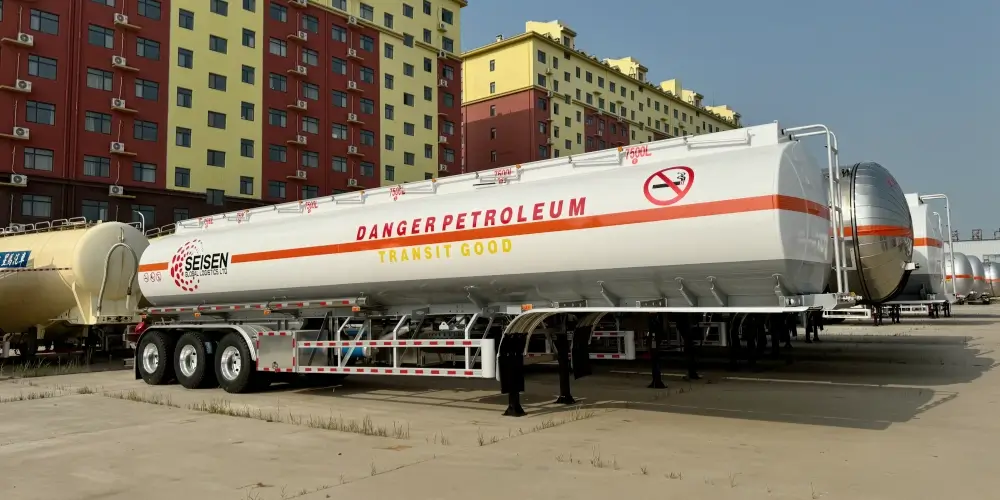

Tri Axle Aluminum Fuel Tank Trailer

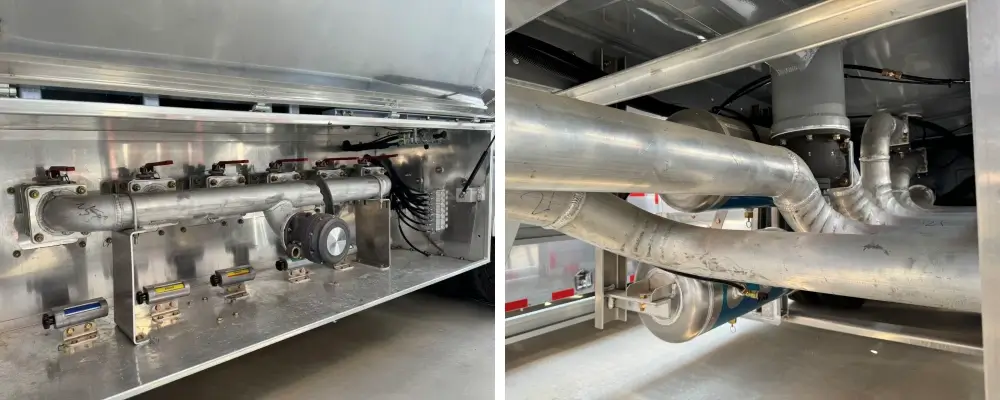

45000 Liters Diesel Fuel Tank Trailer API discharge valve
| Dimension | 10500*2500*3500 mm |
| Compartment | 6 |
| Tank body material | Aluminum alloy(Carbon steel and stainless steel are also available.) |
| Axle brand | L1 |
| Suspension | Air suspension/mechanical suspension (optional) |
| Brake system | ABS/EBS optional |
| Landing gear | 28T JOST |
| Tire type | 12R22.5 |
Aluminum alloy tank trailers are widely used in the fuel transportation industry, mainly for transporting gasoline、diesel oil、kerosene. Due to the corrosion resistance of aluminum alloys, they can also be used to transport methanol, ethanol, and other chemical raw materials.
1.Structural Design: For the main load-bearing areas of the beam, thickening and reinforcement plates are used. Steel plates are also used to reinforce the connection between the tank body and external supports. The tank body is scientifically designed to ensure uniform stress distribution, preventing cracking due to bumpy road conditions and extending the service life of the tanker trailer.
2.Wave Baffles: The placement and number of wave baffles are rationally arranged. Longitudinal supports are provided on the wave baffles to increase their strength and enhance the overall deformation resistance of the tanker trailer.
