5 Axle 100 Tons Folding Gooseneck Trailer from INTAI Factory is a heavy-duty lowboy trailer for transporting excavators, bulldozers, loaders, mining equipment, transformers, and other oversized machinery. Its hydraulic folding gooseneck enables convenient front loading, while the multi-axle design improves load distribution and the low deck supports stable transport. As an integrated manufacturer and trading company, INTAI offers customized configurations, factory-direct supply, and original warranty support for global heavy-haul applications.
Axle: 5 Axles
Load Capacity: 100T
Dimension: 18000mm x 3800mm x 1800mm
Gooseneck: hydraulic folding gooseneck
$28,500.00

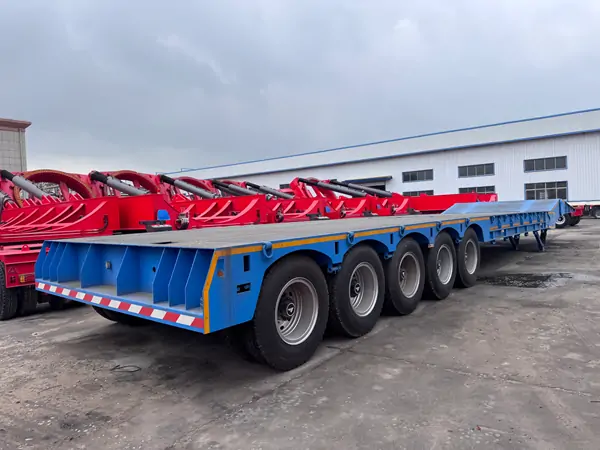

5 Axle Folding Gooseneck Trailer is a heavy-duty lowbed trailer designed for transporting large, heavy, and oversized equipment. It combines a low loading platform, multi-axle structure, and hydraulic folding gooseneck to provide a practical solution for heavy equipment transportation. Folding Gooseneck Trailer is especially suitable for customers who need to move excavators, bulldozers, loaders, cranes, mining equipment, construction machinery, transformers, and other heavy cargo. A five-axle configuration helps distribute the load across multiple axles, while the lowbed structure helps reduce the overall transport height.
Compared with a conventional lowbed trailer with fixed ramps, a folding gooseneck trailer provides a more convenient front-loading method. When the gooseneck folds down, it creates a low-angle loading path. Heavy machinery can then drive directly onto the trailer without relying on a separate loading ramp. Similar folding gooseneck designs use hydraulic cylinders and hinge points to lower the front section and create a loading ramp.
The 5 Axle Folding Gooseneck Trailer is designed for customers who need higher payload capacity and better load distribution.

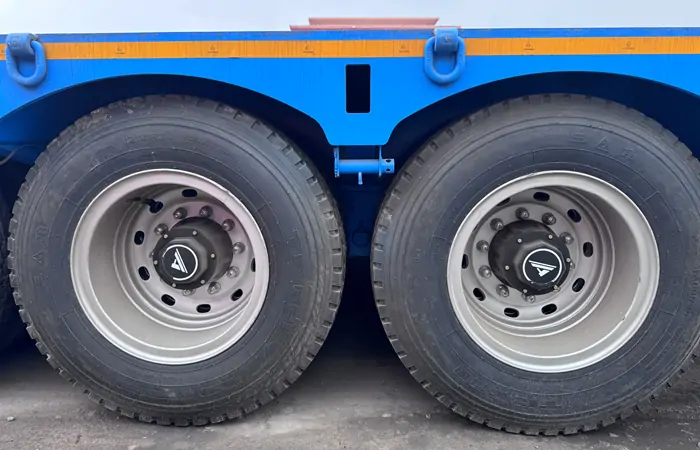

A typical 5-axle heavy-duty trailer can use multiple heavy-duty axles to distribute cargo weight across the trailer. Depending on the axle rating, suspension system, trailer dimensions, local road regulations, and customer requirements, the rated payload can be designed around 100 tons. However, the actual legal payload should always match the trailer engineering design and the road regulations of the destination country. INTAI can design the trailer according to the customer’s required payload, axle load, cargo dimensions, and operating conditions.
The configuration of a 5 Axle Folding Gooseneck Trailer can include:

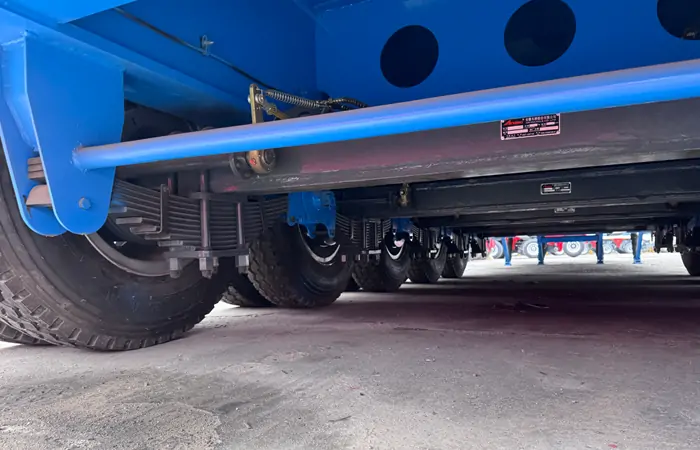

These specifications are examples rather than fixed values. Heavy-haul trailers often require different axle ratings, suspension systems, deck lengths, widths, and loading heights for different markets. For example, existing 5-axle 100-ton models on the market use different combinations of mechanical or air suspension, axle brands, kingpin sizes, and deck dimensions.

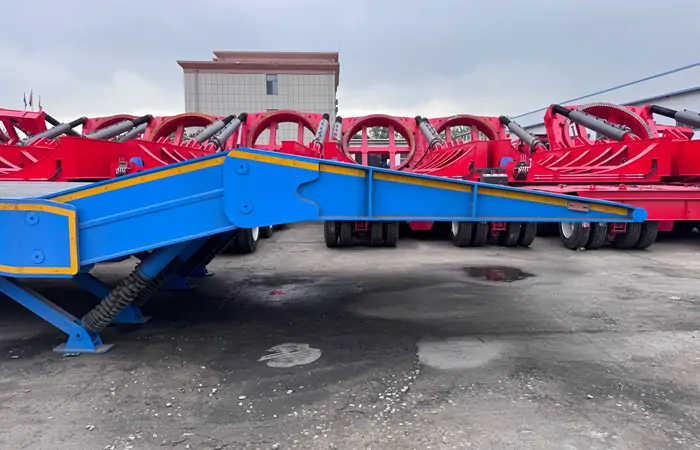

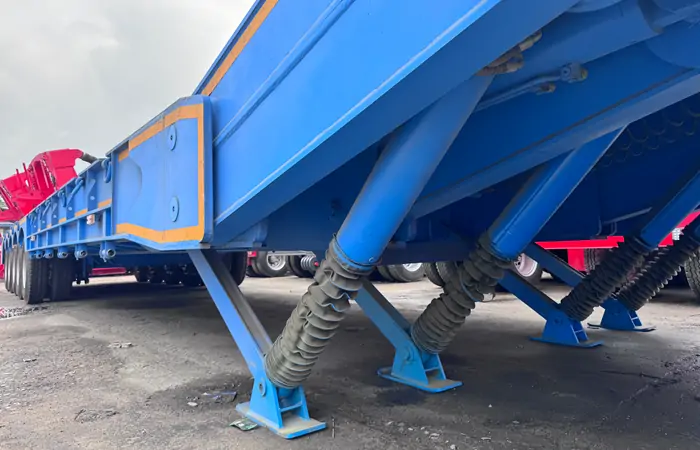

The folding gooseneck is a key feature of the 100 Tons Folding Gooseneck Trailer. INTAI equips the trailer with a hydraulic folding system that allows the gooseneck to move smoothly between the transport and loading positions. Hydraulic cylinders control the movement, while reinforced hinges and heavy-duty structural components provide reliable support between the gooseneck and the main frame.

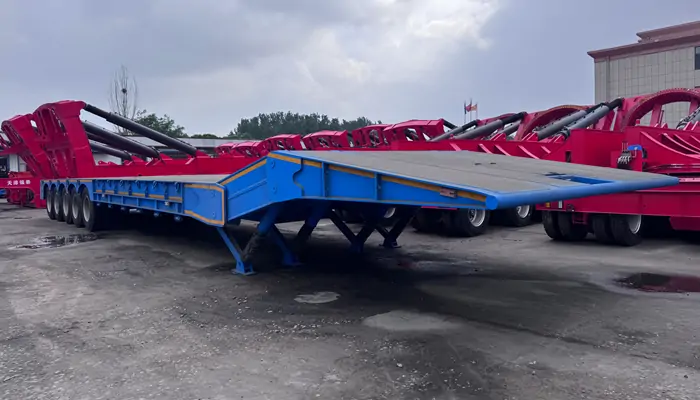

During transportation, the gooseneck stays in the normal towing position and forms a strong connection between the tractor and trailer. During loading, the hydraulic system lowers the gooseneck toward the ground to create a gradual loading path. This allows excavators, bulldozers, wheel loaders, drilling machines, and other self-propelled equipment to drive directly onto the trailer without completely removing the gooseneck.
Compared with some detachable gooseneck designs, this structure simplifies the loading process and reduces the need for separate loading ramps or additional lifting equipment. The low deck height also helps reduce the overall loaded height and improve stability when transporting large and heavy machinery.
INTAI can customize the hydraulic system, deck dimensions, axle configuration, suspension, loading structure, and other components according to cargo weight, equipment dimensions, tractor specifications, road conditions, and local regulations. As a result, the Folding Gooseneck Trailer provides a flexible solution for transporting heavy equipment in construction, mining, energy, infrastructure, industrial, and other heavy-haul applications.
The 5 Axle Folding Gooseneck Trailer provides a combination of high payload capability, low loading height, hydraulic front loading, multi-axle load distribution, and flexible customization.
For customers who need to transport heavy machinery, the 5 Axle 100 Tons Folding Gooseneck Trailer offers a strong solution for construction, mining, energy, infrastructure, industrial, and heavy-haul applications.
With INTAI Factory, customers can source the trailer directly from an integrated manufacturer and trading company, customize the configuration according to their cargo and local requirements, and receive original factory warranty and after-sales support.
Whether the requirement is a 3 Axle, 4 Axle, 5 Axle, or multi-axle Folding Gooseneck Lowboy Trailer, INTAI can develop a suitable configuration based on payload, cargo dimensions, tractor specifications, road conditions, and destination-market requirements.
