Tipper Semi Trailer-Features and Applications

A Comprehensive Guide to Global Tipper Semi Trailers: Design Principles and Industry Applications

Foreword: As a core piece of equipment for transporting bulk cargo such as sand, gravel, building materials, ore, and coal, the tipper semi-trailer plays an irreplaceable role in construction engineering, mining, and bulk commodity circulation. Entering 2026, the design of dump semi-trailers has shifted from the traditional “heavy load and durability” to a balance of “lightweight and intelligent”. Here are the five core characteristics of tipper semi trailers:

Tipper semi trailer loading and unloading direction classification

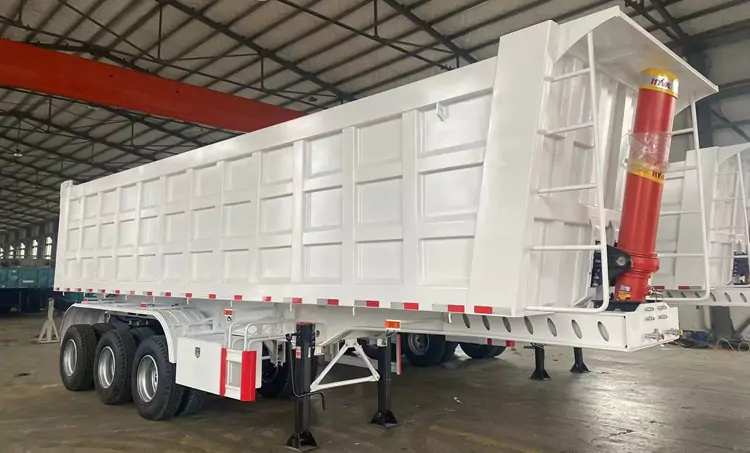

1.1 Rear Tipper Trailer: The most common type, using a front-mounted hydraulic jack to lift the cargo box backward. Design capacity is typically 20-50 m³. Advantages include stable center of gravity and thorough unloading, suitable for transporting sand, gravel, and ore.

1.2 Side Tipper Semi Trailer: The cargo box tilts to the left or right. Advantages include a longer cargo box (up to 13 meters or more), larger design capacity, lower center of gravity, and wider unloading surface, suitable for large storage yards and roadbed construction.

Tipper Trailer Core Structure and Steel Selection

2.1 Body Design: U-shaped and square body shapes are the most common on the market, and their design principles differ.

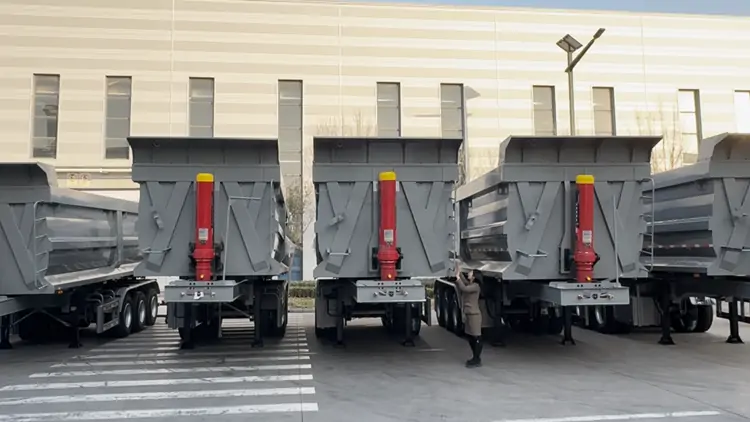

U-Shaped Body: Rounded bottom corners prevent cargo from piling up in corners; suitable for transporting some sticky bulk cargo; integrated side panels and floor for high structural strength.

Square Body: Traditional design, providing maximum capacity; suitable for transporting various irregularly shaped goods.

2.2 Material Selection for Dump Semi-Trailers
The selection of steel for dump semi-trailers varies depending on the part. For example, we usually recommend high-strength steel for the main beams, while the body, due to frequent tilting and friction, uses NM450/Hardox 450 wear-resistant steel to improve the semi-trailer’s durability.

Application and adaptation of dump semi trailers

The usage scenarios of dump semi-trailers and the types of goods transported determine the configuration of the semi-trailer. Firstly, the thickness of the chassis beams will vary, and secondly, the thickness of the body steel will also differ. Specific parameters require a design plan from an engineer.

1. Construction sites and urban engineering projects transporting main goods: earthwork, sand, gravel, asphalt mixture, and construction waste. Short-distance transport requires frequent lifting, necessitating a stable hydraulic lifting system. The HYVA brand is recommended.

2. Mining and Heavy Ore Transportation: Main cargo transported includes iron ore, copper ore, and coal. These semi-trailers typically transport medium to large-sized ores. The impact on the container during loading and unloading necessitates thickening of the container body; the bottom plate thickness is typically 8mm-12mm to withstand the impact of large rocks.

3.Heavy-duty dump trailers are mainly used in agricultural and bulk cargo transportation to transport goods such as corn, soybeans, feed, fertilizer, and wheat. These goods are characterized by low density, requiring a large effective capacity of the container and eliminating any residue to prevent mold growth. U-shaped extended side tipper trailers are generally recommended.
