Fuel Tanker Trailer Specification & Dimension & Capacity

Today we’ll conduct a comprehensive analysis of the technical specification, dimensions, and capacity of fuel tanker trailers—a highly specialized topic. Different capacities are the basis of design and directly determine the vehicle’s size, structure, number of axles, purpose, and regulatory compliance.

The following analysis will be based on common capacity specifications, covering technical parameters, dimensional standards, structural features, applicable scenarios, and regulatory restrictions.

Capacity and load capacity are the most critical indicators for tanker trailers: Tanker truck capacity is typically expressed in m³, L, or gallons, but its design is fundamentally based on the “rated load capacity” (i.e., the permissible mass of fuel). Different densities of fuel (e.g., gasoline approximately 0.73 t/m³, diesel approximately 0.84 t/m³) will affect the actual loading volume.

Formula: Rated load capacity (tons) ≈ Tank volume (m³) × Medium density (t/m³)

Fuel Tanker Trailer

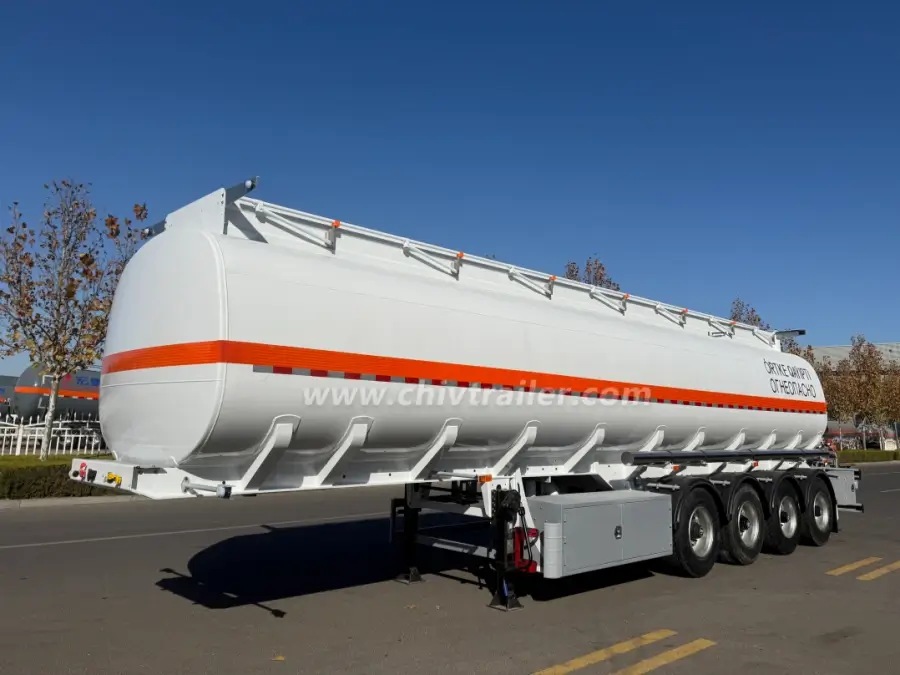

38000 Liters Fuel Tanker Trailer

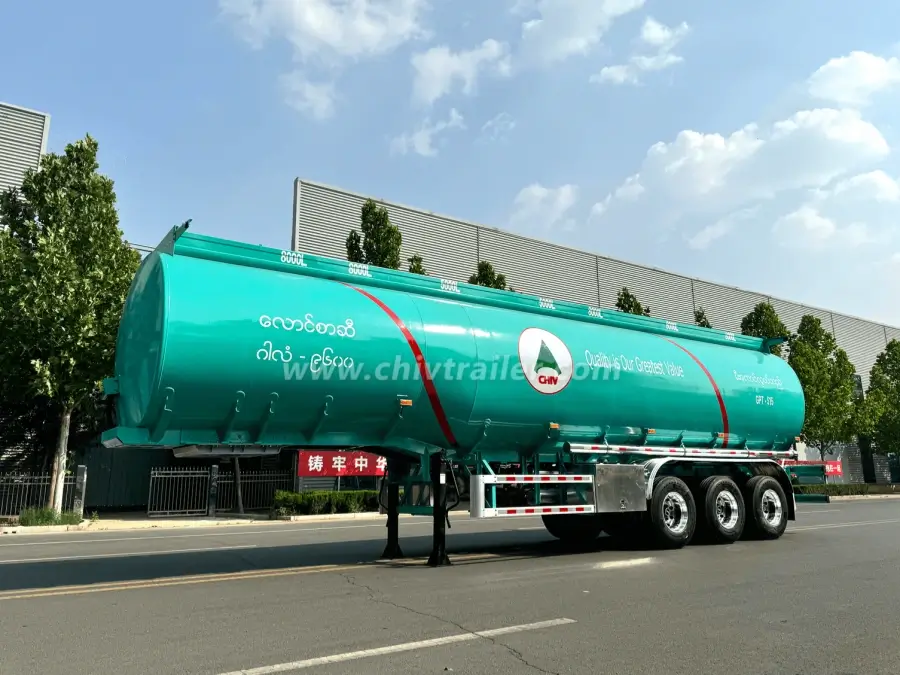

50000 Liters Aluminum Fuel Tanker Trailer

Various Types of Fuel Tanker Trailer Capacities:

Fuel tank trailers typically have capacities between 20,000L and 80,000L, with the most common capacities being 30,000L, 40,000L, 45,000L, and 50,000L.

1. Two-axle tank trailers are generally designed with a capacity of 20,000L-30,000L, offering short overall length and high flexibility, suitable for short-distance, urban fuel delivery.
2. Three-axle tank trailers are the most widely used tank trailers globally, serving as an important component of long-distance fuel transportation, with capacities generally between 30KL and 50KL.
3. Four-axle tank trailers are typically designed with capacities between 50,000L and 80,000L. Four-axle tank trailers are considered the king of long-distance fuel transportation, possessing an exceptionally large carrying capacity.

Fuel Tanker Video:

https://youtu.be/UKFJhEVeNoY

Fuel Tanker Trailer Dimensions:

Tanker Capacity	20000L-80000L(Support for customized services)
Axle Brand	FUWA/BPW/SAF/CHIV
Suspension	Mechanical suspension and air suspension
Tank Material	Carbon Steel/Aluminum alloy/Stainless Steel
Tank Compartment	1-9 Compartment
