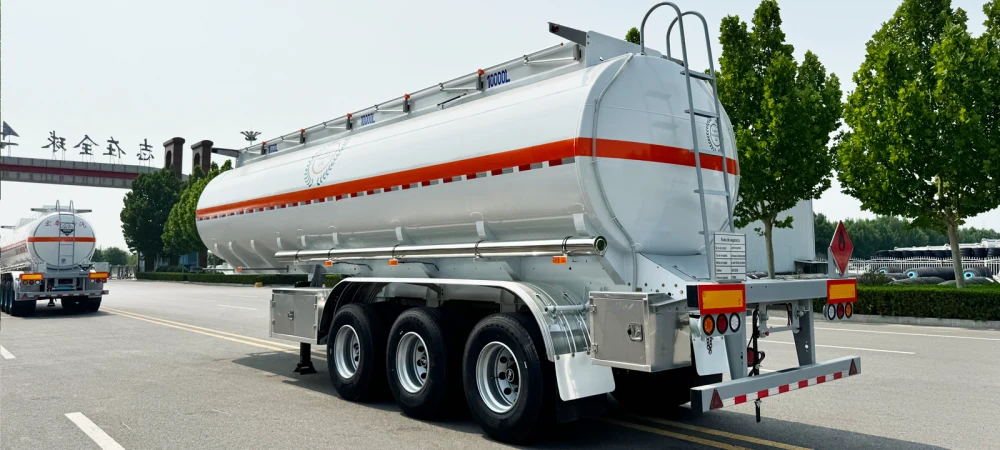

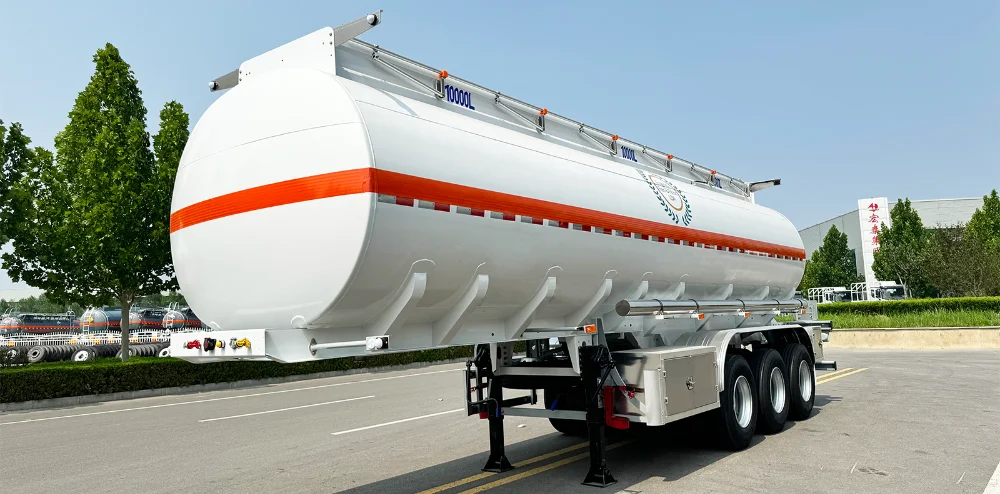

30000Liters carbon steel tank semi-trailer has a strong structure, low maintenance cost and easy welding. It is widely used in the transportation of gasoline, diesel and kerosene in West Africa.
Trailer Type: 3 Axles 30000Liters Fuel Tanker
Delivery Time: 10-20 days
Load capacity: 20000L-90000L
Application: gasoline, petrol, palm oil and other liquids
$14,000.00
30,000L carbon steel tank trailers can be designed with 3-6 compartments, enabling the simultaneous transport of various fuel types, facilitating one-stop delivery from Youku to gas stations. Approximately 1,000 INTAI 30KL-50KL tank trailers are currently exported annually to countries in Africa, including Congo, Nigeria, Ghana, Mali, Zambia, and Tanzania. Over the past 14 years, we have continuously refined our tank trailer designs for the African market, making them more suitable for the complex road conditions found in Africa.
We welcome you to visit our factory in China. We have the most advanced tank trailer production equipment in China, and our tank trailers have been the top seller in China for 14 consecutive years! We look forward to collaborating with partners worldwide.
The entire fuel tanker trailer is made of aluminum alloy toolbox, aluminum alloy fender, aluminum alloy ladder, and aluminum alloy anti-skid net. These parts are independently produced and developed by our factory.

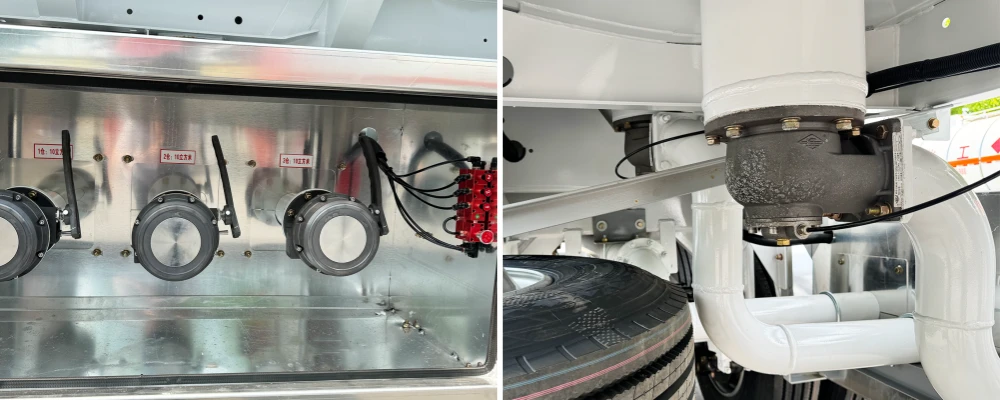

30000 Liters Fuel tanker API discharge port
The 30000Liters fuel tanker trailer is divided into three compartments and equipped with three API discharge valves to meet the needs of fuel loading and unloading. The API discharge port can be selected according to the flow requirements. 4 inches (DN100 / 100mm), 3 inches (DN80 / 80mm), 2.5 inches (DN65 / 65mm), and 6 inches (DN150 / 150mm) models can also be equipped with a reducer to meet the different oil pipeline sizes of different oil depots.

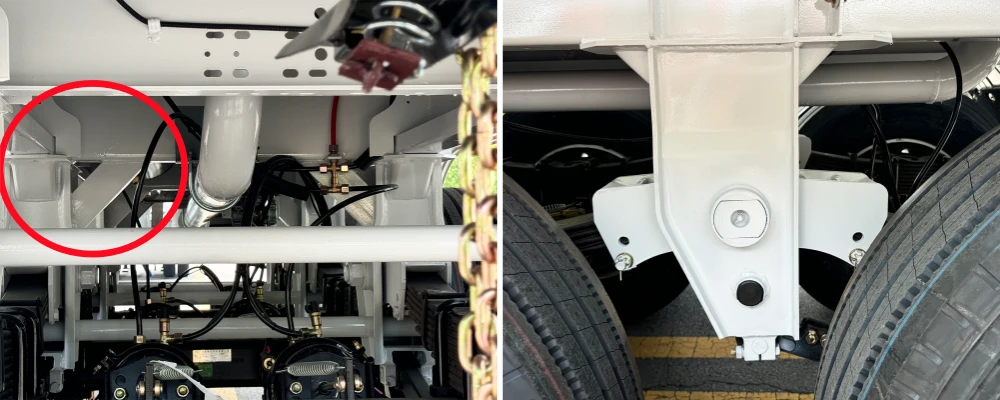

The 30000L fuel tanker trailer suspension is reinforced with U-shaped steel on both the front and rear sides, and the inner side is reinforced with triangular steel diagonally to fully increase the stability of the mechanical suspension, thereby reducing tire wear.
| Overall dimension | 10550*2500*3765mm |
| Discharge valve | 20-inch aluminum European standard tank mouth *3/built-in breathing valve *3 |
| Landing gear | JOST/FUWA 28T |
| King pin | 50#/90# JOST |
| Braking system | Kormee/WOBCO ABS |
| Axles brand | FUWA/BPW/SAF/INTAI(Optional) |
| Tire type | 12 units*12R22.5 |
| Suspension | Heavy duty mechanical suspension |
